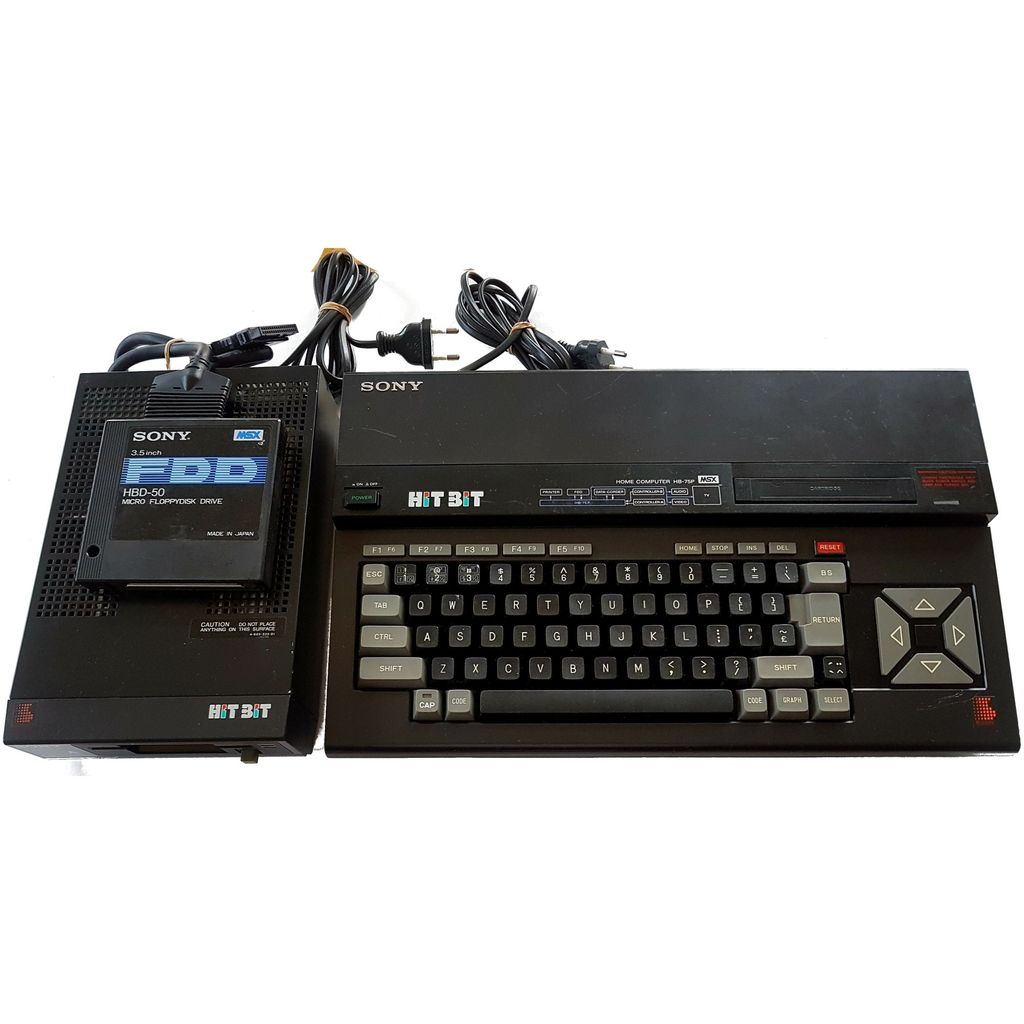

SONY HIT BIT MSX HB-75P MED 3.5" DISK DRIVE

SONY HIT BIT MSX HB-75P MED 3.5" DISK DRIVE

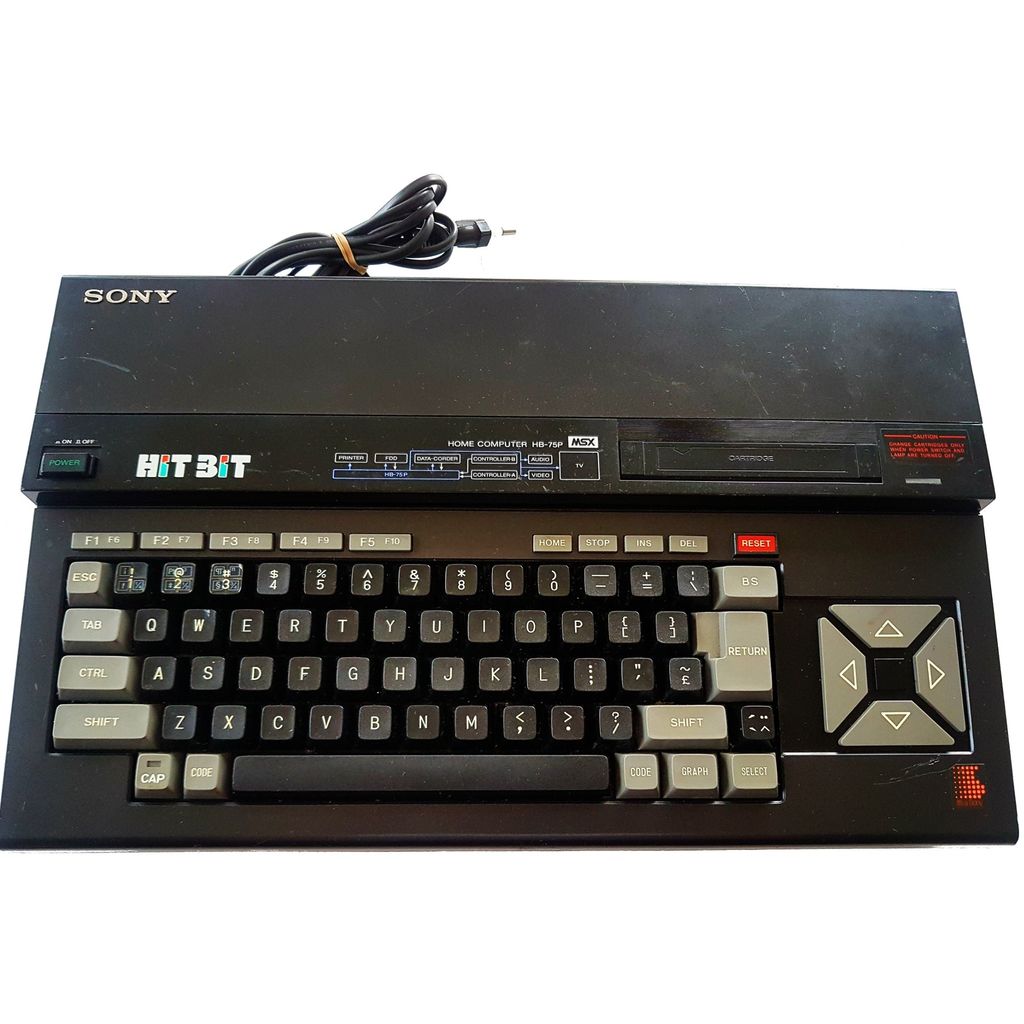

The Sony HB-75P is the adaptation for the European market of the HB-75

The firmware is launched automatically when you boot the machine. It's an English version of the original Japanese software.

Specifications
The HB-75 is a MSX1 with a Z80A from NEC (D780C-1). Its RAM is in slot 2.

Connections

RF output (on all models except HB-75F)
Analog sound output (mono) and composite output (only HB-75)
Monitor connector with sound and composite video outputs (6-pin DIN) on HB-75AS, HB-75B, HB-75D and HB-75P
RGB output (SCART-PERITEL) on HB-75AS, HB-75B, HB-75D, HB-75F and HB-75P
Tape recorder connector
Centronics compatible Parallel port for a printer
2 general connectors (joysticks, mouse, paddle controllers, ...)
1 cartridge slot (HB-75) or 2 cartridge slots (other models)
1 expansion bus slot (only HB-75)


It has 6 options: Address, Schedule, Memo, Transfer (replaced by Copy when a HBI-55 cartridge is present), BASIC + DATA CARTRIGE (only if HBI-55 present), BASIC.

The BASIC + DATA CARTRIGE option allows to save little BASIC programs on the data cartridge and to load / run them from this cartridge, with the commands SAVE"CAT:" and LOAD"CAT:".

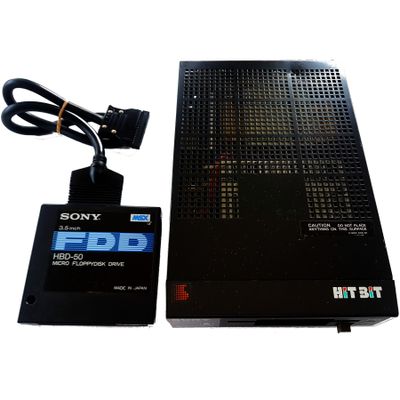

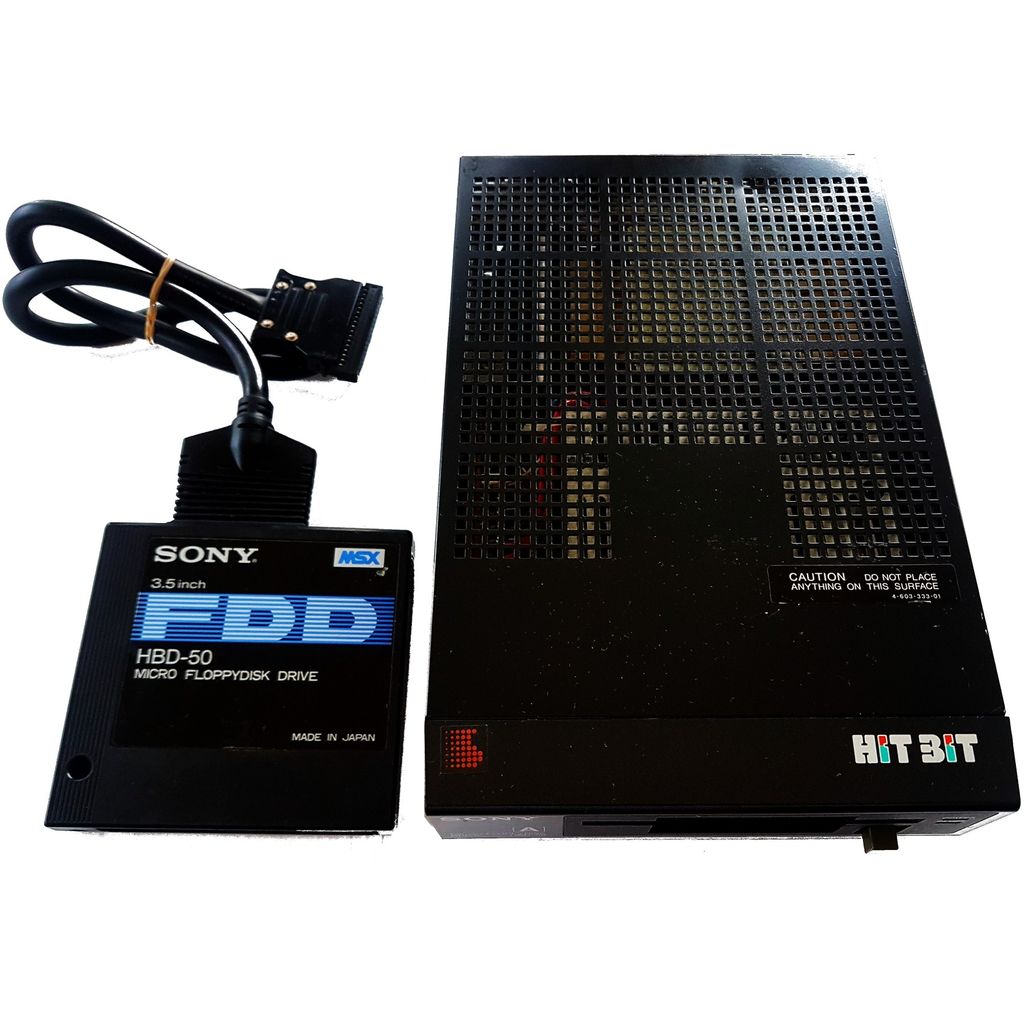

ENHET, BILDKABEL OCH 3.5" DISK DRIVE MED INTERFACE (HBP-50)
